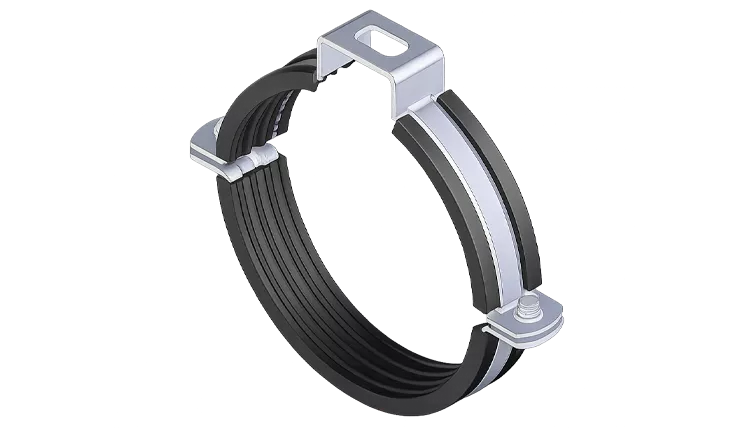

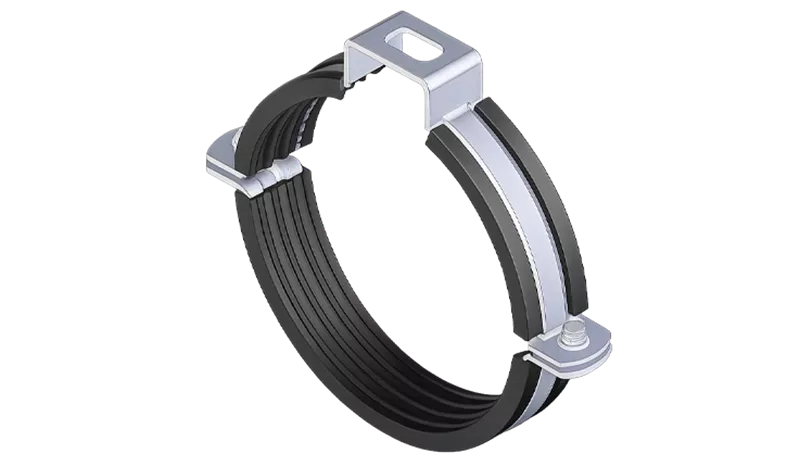

PVC Clamps

PVC Clamps

General Features

Used for mounting pipes to the wall (horizontal/vertical), ceiling and floor.
With EPDM insulated rubber;
- Noise reduction up to 15 dB according to DIN 4109
- Vibration damping
- Partially absorbs thermal expansion in the system.
Safe and easy connection with star-head combi boiler connection bolts.
Plastic washer is used to prevent the bolts from falling during installation.
Material: DIN 1.4301 A2 Stainless Steel

Size (inch)	Breaking Load (kN)	Recommended Max. Tensile Load (kN)
50-75	1.2	0.40
100-200	1.95	0.65

Code No	Size Inch	Clamping Range	L	H	V	T	P	s×B	M	Box Quantity	Box Weight (Kg)
IKPV050	50	48–53	99	39	36	9	18	1.5×20	M6	100	10.175
IKPV075	75	74–80	134	52.5	36	9	18	2×25	M6	70	9.73
IKPV100	100	99–108	159.5	69.5	36	9	18	2.5×25	M6	50	9.1
IKPV125	125	120–128	186	80	36	12.5	20	2.5×25	M6	50	14.88
IKPV150	150	149–161	215	94.5	36	12.5	20	2.5×25	M6	40	14.15
IKPV200	200	198–207	280.7	125	36	12.5	20	2.5×25	M6	25	12.59
